This machine meets various requirements of surgical scenarios for animals, including thoracotomy, diaphragmatic hernia, orthopedics, and minimally invasive surgery etc.
Integrated anesthesia system with oxygen concentrator, ventilation, anesthesia, and monitoring. Comprehensive monitoring of animal breathing status ensures animals are safe.
Turbine drive, no drive gas needs, more cost effective and convenient
Real-time monitoring of ETCo2
Automatically adjust the respiratory parameters once inputting animal weight
O2 concentration can be adjust from 21% to 100% to avoid animal lung collapse or damage or chlorine poisoning
PEEP function: help veterinarians solve low SP02 problems during surgery
Watch detailed demonstrations showcasing the precision, reliability, and advanced features of our veterinary equipment in real clinical environments.
Discover the advanced features that make our veterinary equipment stand out in the industry
Drive Mode: Turbine and electronic control
Bellow: 0-300ml, 0-1500ml

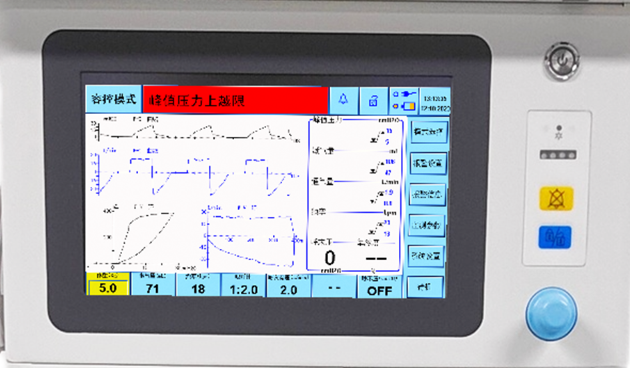

Waveform: Pressure, Flow, Volume, Time, ETCO2
With pressure, flow, and temperature automatic compensation

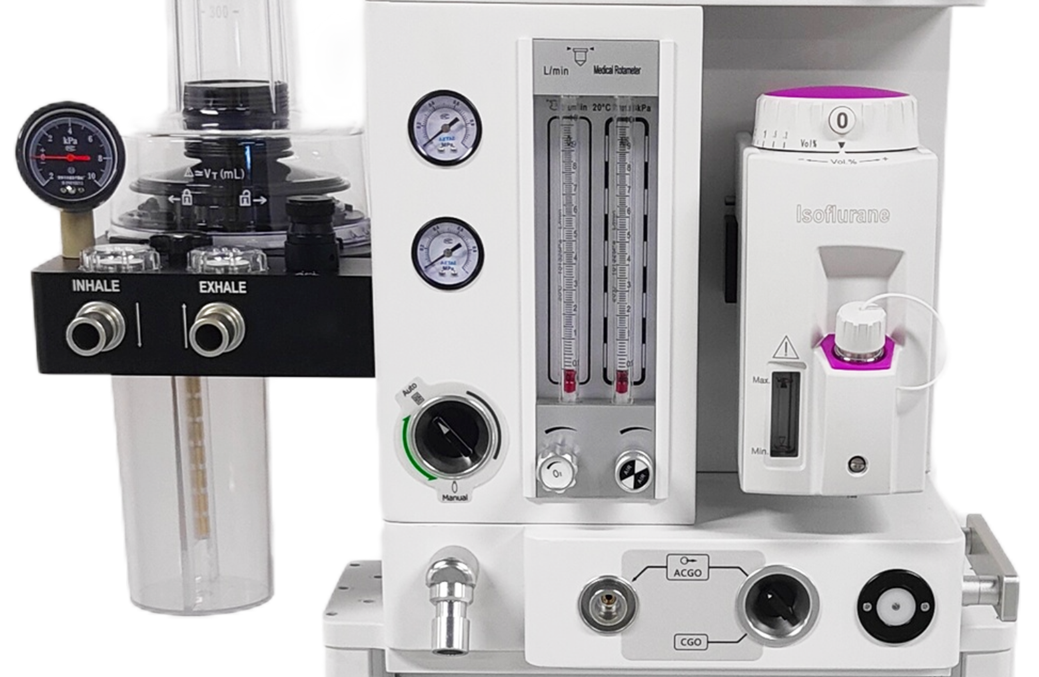

Vaporizer: Isoflurane, Sevoflurane, Halothane
CO2 Absorber: Sodium Lime Tank Capacity: 500ml-750ml
Flowmeter: O2 and Air
O2 Flow: 0-10L/min
Air Flow: 0-10L/min
Tidal volume, breathing rate, I: E ratio, spontaneous breathing rate, spontaneous ventilation volume, peak/ airway/
mean airway pressure, PEEP, end-tidal pressure, inspiratory pressure, FIO2, ETC02, driving gas pressure, minute ventilation
Detailed configuration options for your veterinary equipment needs
| Component | Quantity |
|---|---|
| Main unit | 1 pc |
| ETCO2 module | 1 pc |
| Oxygen sensor | 1 pc |
| Vaporizer | 1 pc |
| Breathing tube | 1 pc |
| Gas source hose | 1 pc |
| Air bag | 1 pc |
| Bellow | 1 pc |
| Exhaust gas filter tank | 1 pc |
| Flow sensor | 1 pc |
| Power cable | 1 pc |
| Fuse | 1 pc |
| Gas hose for oxygen concentrator | 1 pc |
| Optional Item |
|---|
|
5L Oxygen Concentrator
|
